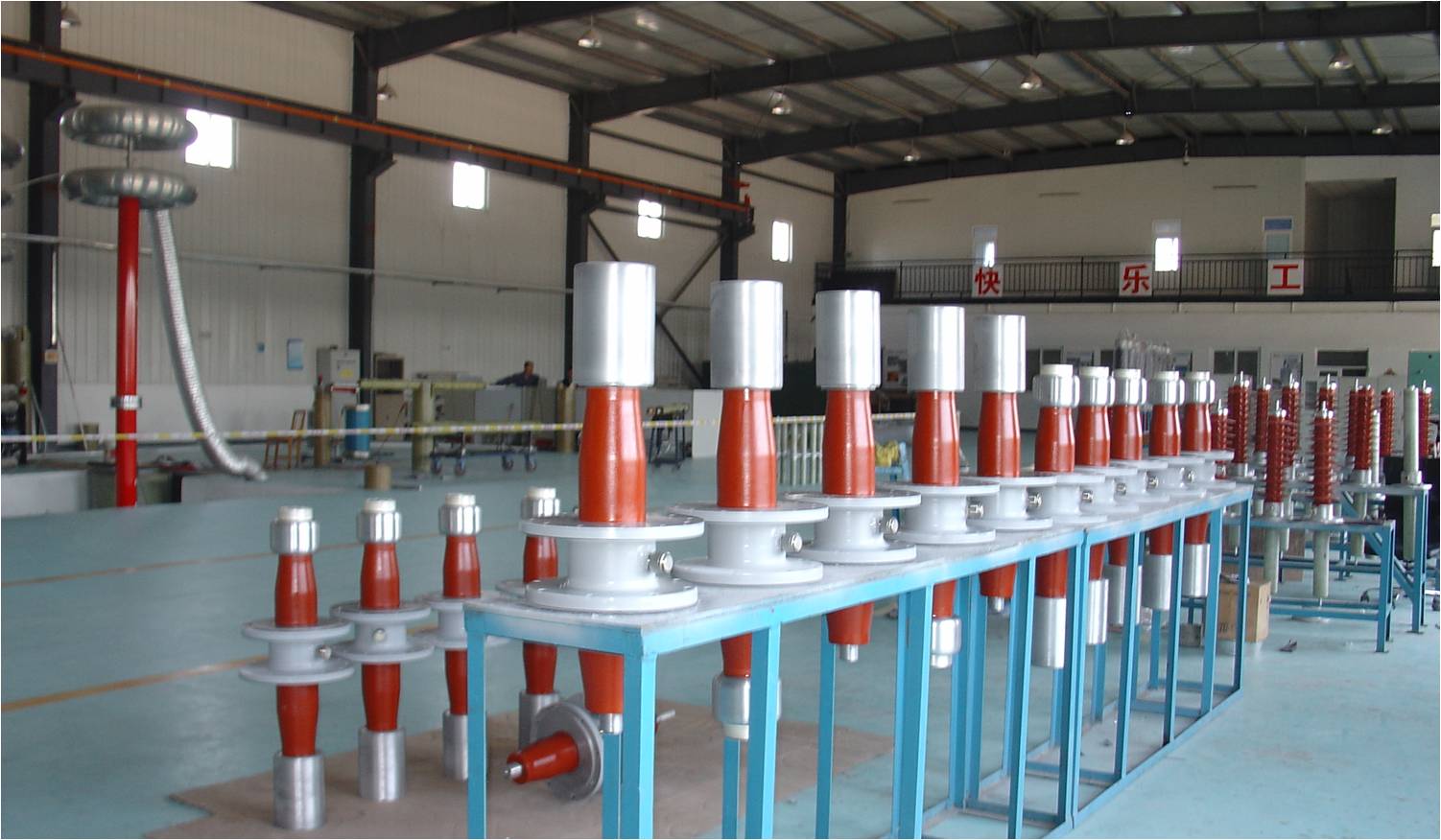

Main performance Main dimension

Ⅰ.Condition for use

   1 Suitable for power system between 12-550kV；

    2 Use both indoors and outdoors；

   3 Ambient Temperature: in＋145℃ to －200℃；

    4 Height：≤1000；(Additional design may be made for those above1000m)

    5 Installation angle：any angle；

    6 Contamination level：≥Ⅲ；

Ⅱ.Main Technical Parameter

 1 Type：EBRG-52kV

 2 Rated voltage（kV）：52kV      标称电压（kV）：50 kV

 3 Rated Current（A）：630~6000A

 4 Pollution Level： Ⅳ

 5 I min power frequency dry (wet) voltage withstand: 105kV

6.Full-wave impulse with stand voltage of lightning:250kV

   7.Under 1.05 times of maximum phase voltage tan : ≤0.07

8.Partial discharge at rated voltage: ≤10pC

9 Bending resistant test load: 3000N

Ⅲ.Type Explaination

E-FRP

B-Transformer Bushing

R-Capacitance

G-Oil/SF6
